Stormbrixx SD®: Versatile Stormwater Solutions for Various Applications
StormBrixx® SD is ACO’s plastic geocellular surface water management system recommended for applications up to 9 tonnes. It consists of a single, recyclable, polypropylene body that can be assembled in a variety of ways to form an open bonded structure.

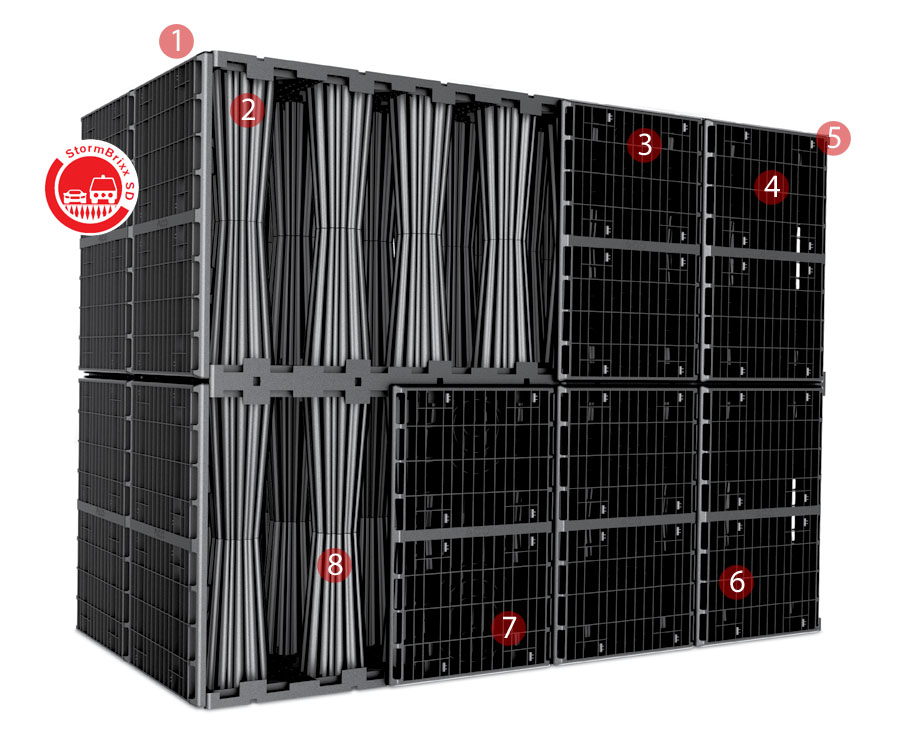

StormBrixx® SD - features & benefits
 | 3 Half bodies per cubic metre |
 | Functional design combined with an intelligent snap-lock system make for easy handling and rapid installation |
 | High void ratio of 97% of total volume available for storage |
 | Height of 1 layer: 914mm or 490mm for 1/2 layer |

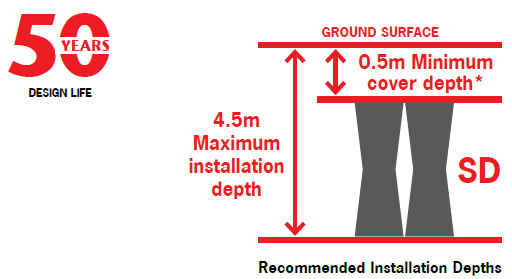

 | Min. cover depth (see image above): 0.5m – landscaped 0.6m – car park |
 | Side panels are used on the outer walls of the structure to enable geotextiles and geomembranes to be installed |
 | Recyclable polypropylene material provides a robust and corrosion-resistant basis for a long-lasting stormwater management system |
 | Small openings at the base of the pillars allow water to fill and drain. This allows the pillars to form part of the storage volume |
StormBrixx® SD - product details
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | |
|---|---|---|---|---|---|
 |

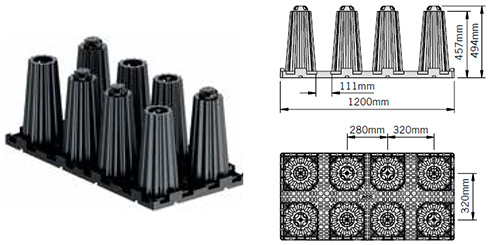

1200 | 600 | 494 | 9.5 | 314090 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
 |

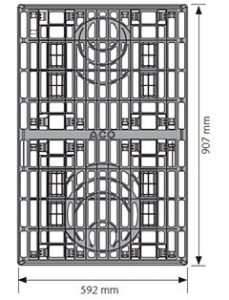

907 | 592 | 104 | 3.1 | 314091 |
 |
453 | 592 | 104 | 1.5 | 314098 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
 |

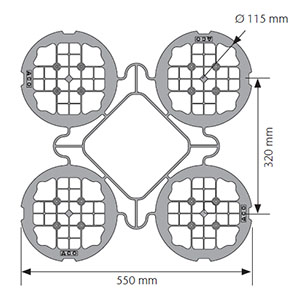

550 | 550 | 50 | 0.8 | 314092 |
 |
1200 | 600 | 94 | 3.5 | 314094 | |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | |
|---|---|---|---|---|---|
 |
53 | 44 | 26.5 | 0.1 | 314093 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
 |
650 | 650 | 120 | 4.7 | 314075 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
 |

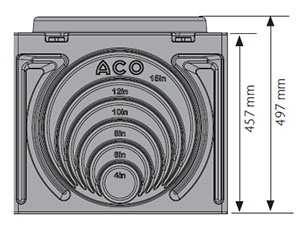

594 | 594 | 457 | 18.1 | 138141 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
Class B | - | ø460 | 50 | 27 | 143123 |
| Class D | - | ø460 | 60 | 30 | 143124 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
300mm high shaft | - | ø437 | 350 | 2.6 | 314038 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
Class B | 560 | 600 | 55 | 44 | 85249 |
| Class D | 640 | 640 | 88 | 70 | 143041 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
Class B | 560 | 600 | 55 | 47 | 85014 |
| Class D | 640 | 640 | 88 | 70 | 143029 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
150mm high shaft | 650 | 650 | 150 | 4.9 | 142832 |
| 300mm high shaft | 650 | 650 | 300 | 9.8 | 142831 | |
 |
Connector clips (set of 4) | 94 | 24 | 26 | 0.05 | 142840 |
| Overall Length (mm) | Overall Width (mm) | Overall Depth (mm) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|---|
 |
DN100 | 210 | 210 | 200 | 0.6 | 142833 |
| DN150 | 260 | 260 | 200 | 1.1 | 142834 | |
| DN225 | 350 | 350 | 200 | 2.5 | 142835 | |
| DN300 | 415 | 415 | 200 | 4.0 | 142836 | |
| DN375 | 500 | 500 | 200 | 6.0 | 142837 |
| Roll Size (m) | Area (m2) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|
 |
0.75mm liner - 8m x 70m roll 1, 2 | 8 x 70 | 560 | 400 | 143167 |
| 1 Geomembrane roll can be cut down to size for a nominal cutting fee, contact ACO. 2 Prefabricated geomembrane panels up to approximately 1,000m2 can be supplied, contact ACO. |
|||||
| Roll Size (m) | Area (m2) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|
 |
2m x 50m roll 3 | 2 x 50 | 100 | 15 | 142971 |
| 2m x 175m roll 3 | 2 x 175 | 350 | 70 | 142973** | |
| 3m x 175m roll 3 | 3 x 175 | 525 | 105 | 142974** | |
| 4m x 175m roll 3 | 4 x 175 | 700 | 140 | 142975** | |
| 6m x 175m roll 3 | 6 x 175 | 1050 | 210 | 142976** | |
| ** If supplied from Perth office, add 'WA' to the end of the Part #, for example '142973WA' 3 Non woven geotextile can also be used for infiltration tanks. |
|||||
| Roll Size (m) | Area (m2) | Weight (kg) | Part No. | ||
|---|---|---|---|---|---|
| 2m x 50m roll | 2 x 50 | 100 | 13 | 142965 | |
| 4m x 50m roll | 4 x 50 | 200 | 28 | 142966 |
Download SD Spec InfoStormBrixx® SD - applications
StormBrixx® SD is ideal for light to medium-duty applications such as car parks and areas accessed by emergency services. Its modular design provides effective stormwater management, making it a reliable choice for soakaway crates and soakaway drainage installations. This soakaway system is designed to withstand vehicle loads while preventing surface water flooding, ensuring safety and operational efficiency in these critical areas.
StormBrixx® SD - benefits
The StormBrixx® SD system offers several benefits as a reliable stormwater retention and management solution. Its high storage capacity and robust structure make it an ideal choice for soakaway crates and soakaway drainage applications. The system’s modular design allows for rapid installation and straightforward maintenance, reducing project timelines and associated costs.
As an integral component of an efficient soakaway system, StormBrixx® SD mitigates surface water runoff, preventing flooding and protecting infrastructure. Its recyclable material and intelligent design provide an eco-friendly and sustainable solution for stormwater management.
StormBrixx® SD - price
The cost of StormBrixx® SD depends on the site requirements and specifications, including installation depth, storage capacity and additional components. For a detailed quote, please contact us. You may also reach out if you have questions or need further information about the system. Our team is here to assist you with enquiries and provide expertise for your project.
For information on Geomembranes and Geotextiles, click here.
