Innovative Solutions for Every Drainage Project: ACO StormBrixx® Products
ACO is proud to offer a comprehensive range of innovative OSD tank products designed to tackle the complexities of stormwater management. Our water management solutions are engineered to provide reliable performance in challenging environments and conditions, safeguarding properties from water damage while supporting sustainable urban development.
Prioritising efficiency, durability and environmental responsibility, ACO StormBrixx® systems are ideal for a variety of scenarios, from smaller residential projects to large-scale industrial developments.
Explore our range of OSD tanks, and get in touch with us today to discuss your water management needs.
ACO StormBrixx® is a unique, and patented, plastic geocellular stormwater management system. Designed for surface water infiltration and storage, its versatility allows it to be used in applications across all construction environments as a standalone solution or as part of a Water Sensitive Urban Design (WSUD).
With roots dating back to the 1940s, ACO is a pioneer in the water drainage and management industry. We understand the crucial role of tactical stormwater drainage systems in protecting infrastructure and the environment. Our solutions consider all stages of the stormwater cycle, from collection to controlled storage, filtration and regulated release of water.
Our modular StormBrixx units, available in standard and heavy-duty options, deliver high storage capacity, exceptional stability and easy installation. These OSDs are also customisable, ensuring you receive the correct and most robust stormwater management solution.
These OSD tanks are complemented by flow control systems, orifice plates and filtration solutions that regulate water flow, filter out debris and ensure compliance with local stormwater standards.

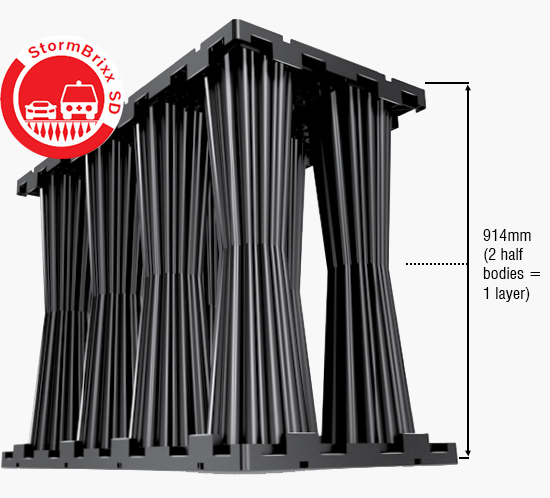

StormBrixx® SD
Standard Duty system
Applications
- Landscaped areas, no vehicles
- Landscaped areas with ride on mowers
- Pedestrian areas
- Driveways, car parks, up to 9 tonne vehicles (solid pavement required)
- For applications with high ground water, contact ACO
| No. of layers* | 1-3 layers |
| Vertical Strength | 350 kN/m² |
| Lateral Strength | 70 kN/m² |
| Design Life | 50 years |
| Minimum Cover – Landscaped | 0.5m |
| Minimum Cover – Car parks | 0.6m |
| Maximum Installation Depth** | 4.5m |
| *Extra layers may be suitable in specific applications, contact ACO. **Ground improvements may be required and ground water has not been taken into account. Seek engineering advice. | |

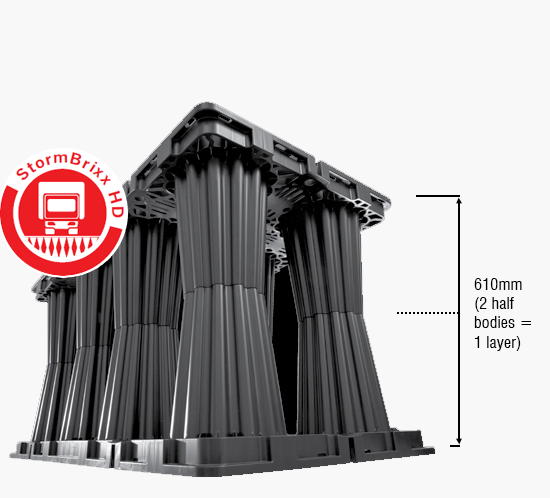

StormBrixx® HD
Heavy Duty system
Applications
- Landscaped areas, no vehicles
- Landscaped areas with ride on mowers
- Pedestrian areas
- Driveways, car parks, up to 9 tonne vehicles (solid pavement required)
- Fire trucks, delivery vehicles, semi-trailers (30 tonnes) (solid pavement required)
- For applications with semi-trailers and/or high ground water, contact ACO
| No. of layers* | 1-4 layers |
| Vertical Strength | 455 kN/m² |
| Lateral Strength | 95 kN/m² |
| Design Life | 60 years |
| Minimum Cover – Landscaped | 0.5m |
| Minimum Cover – Car parks | 0.6m |
| Minimum Cover – Truck traffic | 0.8m |
| Maximum Installation Depth** | 6.0m |
| *Extra layers may be suitable in specific applications, contact ACO. **Ground improvements may be required and ground water has not been taken into account. Seek engineering advice. | |
Built to withstand the demands of varied environments, our OSD tank systems minimise maintenance needs while maximising performance, making them the premier choice for sustainable water management
Structural integrity
The ACO StormBrixx® system has been tested independently to certify structural integrity and the long term life expectancy.
The patented brickbonding and cross bonding feature provides a strong, long life installation and helps improve the construction speed of the tank.
Access and maintenance
ACO StormBrixx® addresses the fundamental requirement of access and maintenance for local authorities. The open cell structure permits completely free access for CCTV and jetting equipment which allows the whole system, including all the extremities, to be inspected and maintained from a few access points.

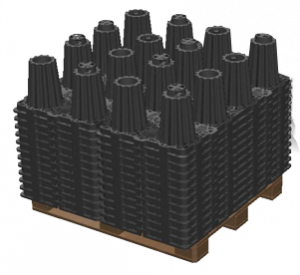

Simplified logistics
The ACO StormBrixx® simplifies delivery, site logistics and installation as a result of its stackable design. Each single injection moulded body nestles into the other, optimising logistics and installation costs significantly, thus helping to reduce the carbon footprint of the system.
System benefits
- Quick to install and check the video
- Brickbonded and cross bonding connection for optimal stability
- Sediment bay and silt trap options for silt management
- Maintenance access and 3D inspection access to tank interior
- Environmentally efficient solution, minimising carbon emissions in manufacture, transportation and on-site assembly
- Fully certified performance
- Manufactured from recyclable polypropylene
- Suitable for all industrial, commercial and residential applications
Introduce a new level of performance within urban development with ACO . Contact us today to discuss how we can support your stormwater management objectives with cutting-edge products designed for long-term reliability and efficiency.
